Circuit Diagram (Diagram)

Drag and drop components, wire connections, Auto-Connect modules, and handle warnings on the canvas.

Adding Components to the Diagram

There are 2 ways: drag and drop from the left panel, or open the full library and click to add.

Method 1 — drag and drop from the left panel

  1. In the left panel, choose the "Shared Library" tab (commonly used, admin-approved components) or "My Library" (modules you created yourself).
  2. Type a keyword into the "Search hardware..." field to filter — the result groups are collapsed by default, click a group (e.g. the "Modules (1)" button) to expand it.
  3. Press and hold the left mouse button on a component card (the cursor shows "Drag to canvas") for about half a second, then drag it onto the canvas area and release at the position you want.

Method 2 — open the full library

  1. In the "Shared Library" tab, click the "Open Full Library" button to open the "Hardware Catalog" modal.
  2. Choose the source "Shared Library" or "My Library", then type a keyword into the "Search hardware..." field.
  3. Select a component, then click "Add to Diagram".

Result: the component appears as a node on the canvas; the status at the top of the page changes to "Diagram Changed" and the "Save" button becomes enabled.

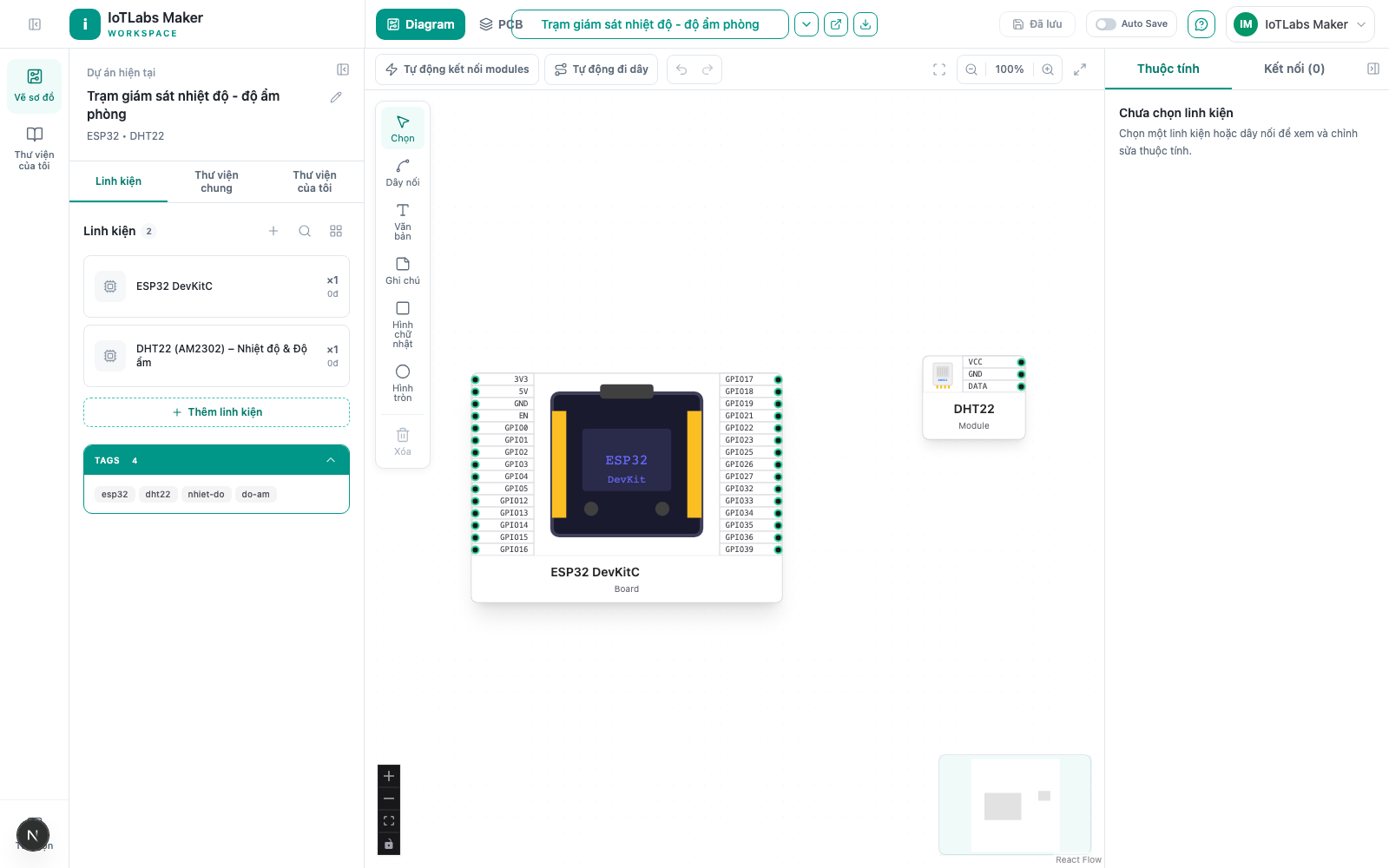

ESP32 board and DHT22 sensor added to the diagram, not yet wired

Notes

  • "Shared Library" only shows components that have been approved by an admin (reviewed: true) — unapproved components and other people's private modules will not appear here.
  • "My Library" only shows modules you created yourself, entirely separate from "Shared Library".
  • When you select a node already placed on the canvas, the Properties panel shows a scope label ("Shared Library" or "Private Library") matching that component's origin.

Example

For the "Room Temperature & Humidity Monitoring Station" project: search for "ESP32" in "Shared Library", drag an ESP32 DevKitC onto the canvas as the main board, then search for "DHT22" and drag a DHT22 (AM2302) sensor next to the board — as shown above, both components are now on the canvas but not yet wired, ready for the next step.
